Aughey Plant

Horizon A8

  • Up to 800 TPH Primary screening with 3 product sizes
  • Variable stroke, 3 shaft Horizontal screen
  • Robust chassis construction, designed specifically for quarry applications

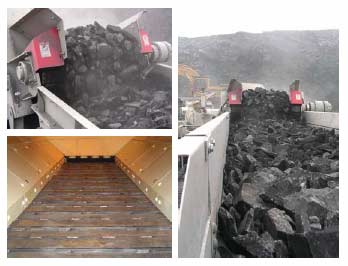

  • Heavy duty ‘Hardox’ lined apron feeder
  • Easily converted to 4 or 5 product machine
  • Largest stockpiling capacity available
  • 20mm stroke, oval screening action minimises pegging
  • Easy maintenance with minimum use of hydraulic cylinders
  • Reliable ‘CAT’ Power

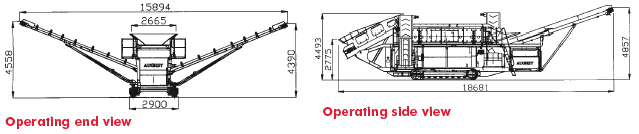

Specifications

  • Apron Feeder: Folding 1200mm wide
  • Side Conveyors: Folding 800mm wide
  • Transfer Conveyor: 1350mm wide
  • Oversize Conveyor: Folding 1200mm wide
  • Screenbox: 4.88M x 1.523M (16’x5’) Horizontal
  • Powerunit: Diesel/hydraulic Caterpillar 160 Kw

Videos

Click Here to watch demonstration videos of the A8 in action.

Main Benefits

Lowest Cost Per Tonne

Maximise Crusher Performance with increased screening capacity

Increased Return On Investment of your screening and crushing plant

Brochure

You can download a brochure on the Horizon Series by clicking here

Application Focus

CRH Roadstone

Application Focus - CRH Roadstone
  • Feed from Metso LT140 Primary Jaw
  • 800TPH Throughput
  • Max feed size 12" (300mm)
  • Products 0-40mm, +40-100mm, +100mm
  • Oversize fed direct into LT1415 (not shown)

Behans Quarry

Application Focus - Behans Quarry
  • Feed from Pegson Automax 1300 Cone
  • 380 TPH Throughput
  • Max Feed size 3" (75mm)
  • Produts 0-15mm, +15-22mm, +22mm

McCabe Contracts

Application Focus - McCabe Contracts
  • Feed from Metso 1516 Impactor
  • 500 TPH Throughput
  • Max feed size 8" (200mm)
  • Products 0-16mm, +16-57mm, +57mm
